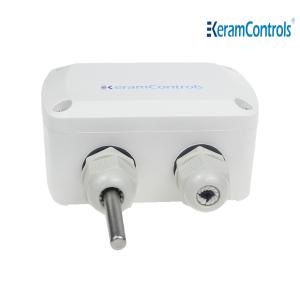

PT100 sensor Temperature Sensor
Description
KTS100 series temperature sensor is a thermistor in the form of
resistance to reflect the temperature change of the sensor,
customers can obtain temperature change data according to the
change of resistance value, so that the temperature measurement can
be accurate.
Features
- Range from -40 to +200°C
- Resistance output
- Standard accuracy, see table
- Protection class: IP65 / NEMA 4
Application
KTS100 temperature transmitter used for temperature measurement in
heating,
ventilation and air conditioning systems enabling weather-dependent
temperature regulation.
Technical Data
| Model | KTS100 |
| Temperature Sensitive Element | PT100 Class A Accuracy ±(0.15+0.002t) |
| PT 1000 Class A Accuracy ±(0.15+0.002t) |
| NTC 10k B3950 Accuracy B:3989K±1% |
| NTC 10k B3435 Accuracy B:3435K±1% |
| NTC 1k Accuracy B:3500K±1% |
| NTC 2k Accuracy B:3977K±0.3% |
| Response Time | <1min |
| Element Connection | 2-wire |
| Media | Air or liquid |
| Operating Temperature | -40...+70°C |
| Storage Temperature | -30...+70°C |
| Measuring Range | -40...+200°C |
| Housing Material | PC & ABS, UL94-V0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
Notes On Disposal
Product Certification
Dimensions(mm)
Ordering Guide
KTS100-Range-Element
| Model | Range | Element |
| KTS100 | PT100 Class A | (1) |
| PT1000 Class A | (2) |
| NTC 10k B395 | (3) |
| NTC 10k B3435 | (4) |
| NTC 1k | (5) |
| NTC 2k | (6) |
