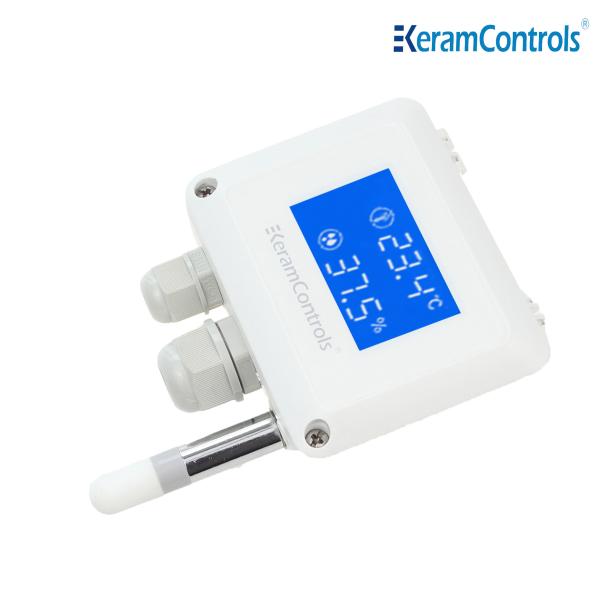

KTH500 3 Wire Temperature Humidity Transmitter For Greenhouse
Description
Temperature and humidity transmitter is popular in many industries.
It is widely used in various fields that need to measure and control the temperature and humidity, such as workshop , station,
building, meteorology, scientific research, chemical
industry,hotel, medical treatment, environmental protection, food
and other materials storage, HVAC, etc.
Pipeline temperature and humidity transmitter adopts the latest
integrated temperature and humidity measurement technology, through the signal processing of
high-performance single-chip microcomputer, the whole machine has
superior performance and excellent long-term stability. This series
of transmitters adopts a professional pipeline installation method,
which is easy to use and outputs standard current signals, which is
suitable for most industrial control equipment. This series of
products are integrated temperature and humidity transmitters,
which are widely used in building automation, climate and HVAC
signal acquisition, greenhouses, and pharmaceutical and chemical
industries.
KTH500 temperature and humidity transmitters can be used to measure
relative humidity and temperature in various HVAC applications, as
well as monitor building energy management systems. This series of

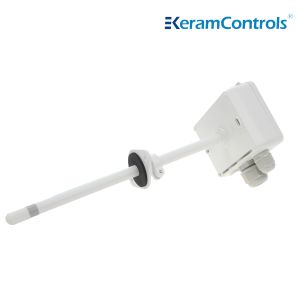

products includes duct-mounted transmitters, IP65 protection grade

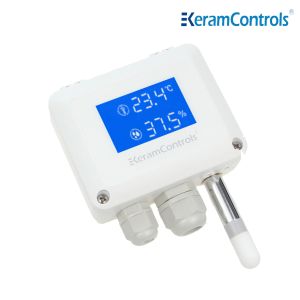

wall-mounted transmitter. KTH500 series temperature and humidity
transmitters are easy to install, have high accuracy, stable and
reliable operation, and are ideal for various harsh environments.
Feature
Large size backlight display
More convenient wiring and setting
- M16 M20 double cable gland
Cable size φ5…12mm
Prevent the pollution of the shell surface in harsh environment
Application
- HVAC system
- Greenhouse
- Food transportation
- Cold storage and refrigeration
- Clean room environment monitoring
Technical Data
| Model | KTH500 |
| Power Supply | 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485
) |
| Output | 4-20mA/0-5V/0-10V/RS-485 |
| Operating Temperature | -30…+70℃ |
| Storage Temperature | -40…+60℃ |
| Operating Humidity | 0...100%RH |
| Temperature Range | DIP Switch |
| Display | Backlight LCD |
| Maximum Wind/Flow Speed | 30m/s |
| Electromagnetic compliance | EN61326-1,Industrial Environment |
| Housing Material | PC&ABS,UL94V-0 |
| Protection Class | IP65/NEMA 4 |
| Cable Gland | M16*1.5 |
| Measurement Performance-Temperature |
| Measurement Range | -35...+80℃ |
| Accuracy | ±0.3℃(20-60℃) |
| Temperature Dependence | ±0.01℃/℃ |
| Measurement Performance-Humidity |
| Measurement Range | 0...100%RH |
| Accuracy | ±2%(0-90% @25℃)/±3%(90-100%@25℃) |
| Stability in Typical HVAC Applications | ±0.01RH/Year |
Dimension(mm)
Measuring range adjustment
Ordering guide
KTH500——Output——Installation——Filter
| Model | Output | Installation | Filter |
| KTH500 | 4-20mA(2 wire) | (E) | Wall | (W) | PTFE | (P) |
| 4-20mA(3 wire) | (F) | Duct | (D) | Stainless | (S) |
| 0-5V/0-10VAD(3 wire) | (G) | | | | |
| RS-485 | (H) | | | | |
