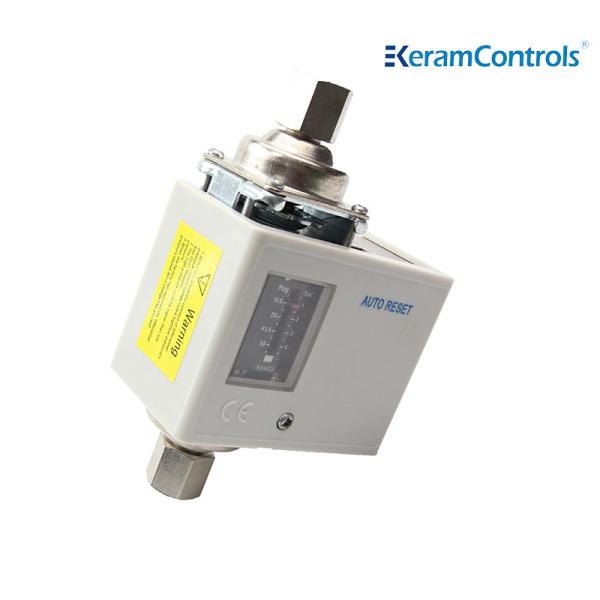

Liquid Air Differential Pressure Switch Stainless Steel
Description
Differential pressure switch offers a unique blend of compact
dimension, excellent performance, environmental protection, long
working life mechanics, and design fexibility. The high resolution
micro switch and sensitive diaphragms combine to provide a narrow
deadband and high stability. A convenient, internal & safety lock
accessible adjustment wheel is multi-turn to provide easy set point
adjustability. Typical the switch applications include filter
monitoring and proof-of-flow in wastewater, bioprocessing, food and
beverage, HVAC, and gas processing industries.
QYD series differential pressure controls is designed to prove flow
through pumps
Renovated SPDT micro-switch ensure the reliable switch function
Used in fluoridated refrigerant,but also in air and liquid(-20 to
120°C)
Flexible mounting bracket suits various kinds of application
Various connections are available on request
IP33 rating
CE approval
Model Specification
| Model | Differential(Bar) | Factory Setting | Max Working
pressure |
| Min | Max |
| QYD2C | 0.5 | 2 | 0.5 | 12 |
| QYD4C | 0.5 | 3.5 | 1 | 12 |
| QYD4CH | 0.5 | 3.5 | 1 | 30 |
| QYD6CH | 1 | 6 | 6 | 30 |
| QYD4C/B | 0.3 | 4 | 0.3 | 17 |
Dimensions(mm)
Electric Rating
Rated Amps(A) Rated Voltage(V) | 125V
A.C | 250V
A.C |
| Non-Inductive Current | 20A | 10A |
Inductive
Current | Full Load | 15A | 8A |
| Locked Roter | 72A |
Contact Function
| 1 | Common Terminal |
| 2 | Close on Pressure Increase |
| 3 | Close on Pressure Decrease |
l Operating direction on press Increase at High Press. Side
Connection & Installation
Mounting Plate
Operating Instruction
1. The new outer cover,two fingers pinch both sides of the plastic
lid,open the outer cover can be pumped out;
2. To be installed in the pipe,must use two wrenches and twist
tight;
3. Do not install the controller over electric rating of the
device.
FAQ
1 Q: What's the delivery time?
A: According to the specification and quantity of your order,
generally 4
days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our
own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
